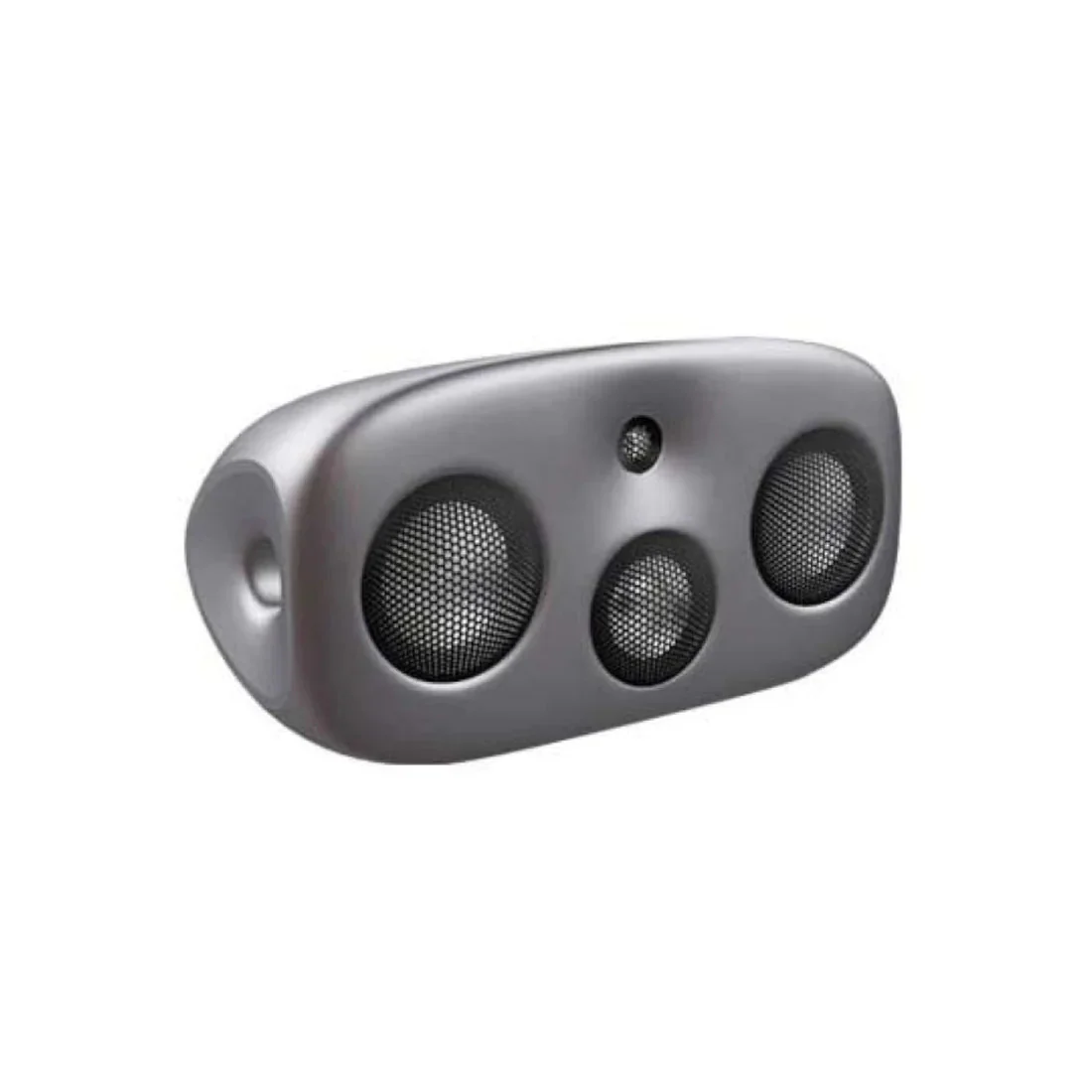

KAYA C35
The Kaya series speakers feature controlled mid-to-high directivity, making them ideal for home theater applications. The Kaya C35 center channel inherits all the features of its predecessors, including the exponentially tapered tube reflex loading first introduced in the Giya series, which absorbs all internal cabinet resonances. In home theater systems, the Kaya C35 is the perfect complement to the K45 and K90, and can also be used in three locations: L/C/R.
A new listening experience
The C35 uses dual front-mounted C125L woofers to handle frequencies below 300Hz, while reaction-cancelling bass reflex ports are located on the end faces to minimize cabinet vibration.
As with the K45 and K90, midrange frequencies are handled by the C100SE mounted in its own exponential absorber, while high frequencies are handled by the D26 tweeter mounted in a shallow waveguide to control directivity and time alignment.
One, Two, More
Even though it’s a two-way system, the Kaya 25 packs a punch. Don’t let its appearance fool you. Despite its horizontal design, the Kaya C35 can be paired with a Kaya 45 or 90 to create a center channel.
However, a stereo or multi-channel system using only the KAYA C35 will “get the job done.” The possibilities are endless.
Perfect Cinema
The KAYA C35 can be used as a center speaker for your home theater. Its custom black matte finish makes it virtually invisible and almost unnoticeable in the dark.
-
SPECIFICATIONS
| Specifications | Vivid Audio KAYA C35 |
|---|---|
| Configuration |
3 way 4 driver system |
| Cabinet material |
Vacuum-infused glass reinforced sandwich composite |
| Cabinet colour |
Piano Black, Lexus Pearl White, Oyster Matte |
| Bespoke colours |
Any PPG automotive colour available on request |
| Drive units |
HF: D26 – 26mm Tapered Tube loaded alloy dome unit |
|
MF: C100 – 1 x 100mm alloy dome coned unit in tapered tube enhanced reflex loading |
|
|
LF: C125 – 2 x 125mm alloy coned unit in tapered tube enhanced reflex loading |
|
| Bass loading |
– |
| Sensitivity |
87dB @ 2.83VRMS at 1m on axis |
| Nominal impedance (Ω) |
6 Ohm |
| Frequency range (Hz) |
43 – 25,000 Hz (-6dB) |
| First D26 Break Up mode: |
44,000 Hz |
| Harmonic distortion (2nd and 3rd harmonics) |
< 0.5% over frequency range at 1W |
| Cross over frequencies |
300, 3,000 |
| Recommended amplifier power |
25W – 125W |
| Speaker size |
340 mm (H) x 680 mm (W) x 280 mm (D) |
| Net weight |
19 kg |
| Shipping dimensions |
TBA |
| Shipping weight |
TBA |
